Upfront: this tool has no OCR and no AI — it's a genuine but simple position-based heuristic. It works well on clean, text-based tables and struggles with merged cells, scanned PDFs, and irregular layouts. Read on for exactly how it works and where it falls short.

Why PDF tables aren't simple to extract

A PDF doesn't store a "table" — it stores individual text strings, each with an X/Y position on the page, plus lines and boxes that visually look like a grid. There's no underlying row/column data structure the way a spreadsheet has. Reconstructing rows and columns means inferring structure from position alone.

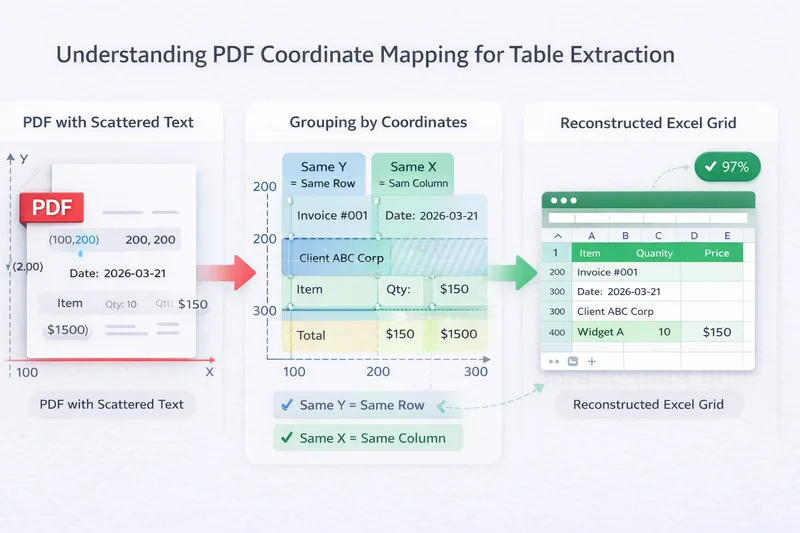

How this tool actually reconstructs rows and columns

The PDF to Excel tool does this in two real steps:

1. ROW DETECTION

  Group text items whose Y position is within a small tolerance of each other — these become one row.

2. COLUMN DETECTION

  Collect the X positions of every item on the page, cluster nearby values together (a simple gap-based

  grouping, not machine learning), and treat each cluster as a column. Every row's items are then placed

  into their nearest column — so a row with a blank cell doesn't shift its later values into the wrong spot.

That second step is a genuine fix over the simplest possible approach (just reading items left-to-right per row), which silently misaligns data whenever a row has a missing cell. It's still a heuristic, not true table understanding — it can be confused by merged cells, multi-line cell content, or tables with inconsistent column positions across pages.

What this tool doesn't do

No OCR — scanned/photographed PDFs won't extract at all.
No AI or machine learning — it's position-clustering, described accurately above.
One sheet per file — multiple tables land on the same sheet, not separate tabs.
Excel (.xlsx) output only — no CSV, Google Sheets, or ODS export.
One file at a time — no batch processing.
No formula/formatting preservation — plain values only.

For any of these — OCR on scanned invoices, true AI-based table understanding, batch processing dozens of files — a dedicated paid tool built for that will do better. We'd rather point that out than have you discover it after the fact.

Getting the best results from this tool

Use PDFs with real, selectable text — try selecting text in your PDF viewer first to confirm.
Simple, single tables per page work best; multiple tables on one page may blend together.
Always check the output — especially numeric columns — before using it for anything financial.
Merged header cells or multi-row headers commonly need manual cleanup afterward.

Try extracting a table

Open PDF to Excel

FAQ

Can I convert scanned PDFs to Excel?

Not with this tool — there's no OCR. Only PDFs with real, selectable text will extract.

Does it use AI?

No — column detection is a position-clustering heuristic, not machine learning.

Will multiple tables go to separate sheets?

No — everything currently lands on one sheet.

Is my PDF uploaded anywhere?

No — this tool runs entirely in your browser, verifiable in your Network tab.
